PLX Air Intake Temperature Module with Sensor

SM-AIT
iMFD Sensor Module – Air Intake Temperature
Digital AIT Sensor K Type T.C.

DESCRIPTION:
SM-AIT accurately measures the air intake temperature of any intake manifold. This is ideal for intercooler, or aftercooler applications. Any K-Type thermocouple is compatible. Up to 32 SM-EGT modules can be daisy chained together in the iMFD system. SM-AIT can also be used as a stand alone unit capable of interfacing with 3rd party hardware. All Sensor Modules are housed in high quality extruded aluminum designed to operate even in the most extreme conditions. In addition, all SM modules offer outstanding digital accuracy, response and resolution which far exceeds that of a standard gauge.

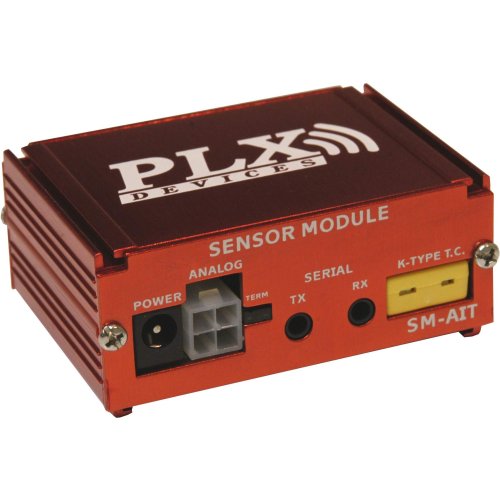

CONNECTION DIAGRAM:

1. Connects to 12V-18V power source.

2. Analog outputs (0-5V analog output, ground)

3. Termination jumper. Closed for first SM in daisy chain.

4. Connects to next SM in daisy chain or to first DM

5. Connects to previous SM or unconnected if first SM in daisy chain

6. Connects to AIT probe K-Type Thermocouple

USES:

ANALOG OUTPUTS:

1. 0-5V analog linear output

(Click to enlarge)

INCLUDED ITEMS:

1. SM-AIT main unit

2. 4ft power wire with 2.1mm connector

3. 4ft Analog wires and connector with 4 terminals

4. 1ft Serial Cable

5. Termination jumper

6. Quick start guide

7. K-Type T.C (sold separately)

SPECIFICATIONS:
