HD High Performance Radiator Tundra, Sequoia V8

Original price was: $509.00.Current price is: $469.00.


Vehicle applications


  • 2007-2020 5.7L
  • 2007-2009 4.7L
  • 2010-2020 4.6L


  • 2008-2020 5.7L
  • 2008-2009 4.7L
  • 2010-2012 4.6L

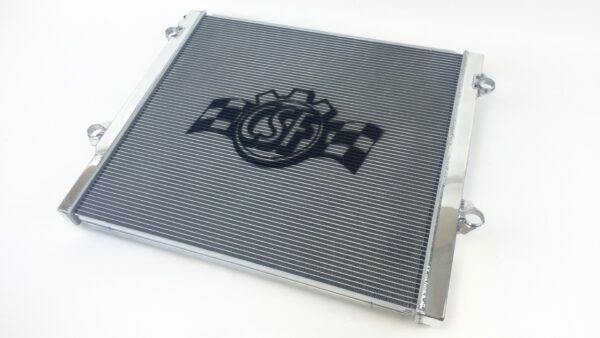

From the desert to the mountains, and where the turf meets the surf, Toyota’s Tundra and Sequoia were ideally designed as the “go-anywhere truck”.  Some of the earlier released models are coming of age, and the need to replace the original radiator is becoming increasingly apparent. CSF has developed another industry exclusive, a new all-aluminum, high-performance, 2-row radiator.

Many Tundra/Sequoia are getting into the hands of the off-road enthusiast for its rugged, yet quirky design, reliability, and off-road capabilities. The performance and aftermarket parts catalog continue to grow, and whenever engine performance increases, the burden on the cooling system also rises. It’s one thing driving a racecar and having overheating or leak issues on the track where the safety team can easily tow you back to the pits. Getting stuck on a trail or in the desert in the middle of nowhere can be quite a challenge.

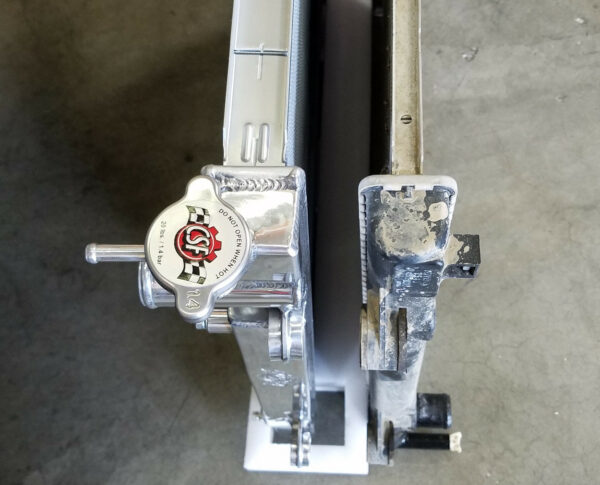

CSF’s new radiator comes complete with CSF’s industry-leading and exclusive B-Tube technology that increases the heat dissipation by approximately 15% over regular tubes as well as multi-louvered fins to maximize airflow through the radiator core. 100% TIG welded construction ensures a higher level of reliability and durability compared to the OEM plastic tanks, which may become brittle or susceptible to cracking over 5+ years of use, especially when driven in extreme driving conditions. Although the CSF unit has over 50% more capacity than the OEM unit (42mm 2-row B-Tube core versus 27mm 1-row core), it is still a “drop-in fit”, requiring no modifications to install. A true plug-and-play upgrade and replacement solution. Topped off with CSF’s signature 1-hour mirror polish to make it pop! The Toyota Tacoma radiator by CSF is the best you can get.

Product features

  • 2-row, 42mm ultra-high performance radiator core
  • All aluminum construction and hand TIG welded.
  • Exclusive B-Tube technology and 6.5mm multi-louvered fin height
  • Hand polished to a mirror finish
  • CNC machined mounting brackets
  • True drop-in-fit with no modifications necessary
  • ideally suited for high output and supercharged engines
  • For both manual and auto transmissions, has the auto trans cooler built-in like the OEM unit
Year Make Model Engine
Year Make Model Engine
2007 - 2009 Toyota Tundra V8 4.7L 2UZ-FE
2007 - 2021 Toyota Tundra V8 5.7L 3UR-FE
2008 - 2009 Toyota Sequoia V8 4.7L 2UZ-FE
2008 - 2020 Toyota Sequoia V8 5.7L 3UR-FE
2010 - 2020 Toyota Sequoia V8 4.6L 1UR-FE
2010 - 2021 Toyota Tundra V8 4.6L 1UR-FE
Weight 24 lbs
Dimensions 34 × 28 × 6 in
